SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

SS304 Wedge Wire Screen Pipe

Wedge Wire Screen Pipe

stainless steel wedge wire screen

Luogo di origine:

Città di Hengshui, hebe Provincei, Cina

Marca:

HengYuan

Certificazione:

ISO,CO,FORM E,CIQ, etc

Numero di modello:

HY070703

Contattici

Richieda una citazione
Dettagli del prodotto
Nome:
Pipa di schermo a filo a fune a base di canna
Materiale:
Acciaio inossidabile 304
Diametro:
25 mm
Lunghezza:
200 mm
Scatto:
0.25mm
Acciaio:
cavo di V di 1.5*2mm
Rod di supporto:
cavo di V di 2*3mm
Finali:
Maschio a filo
Tecnica:
Saldatura del punto
Caratteristiche:
non ostruzione
Applicazione:
filteration
Pacco:
Scatola di legno
Tipo di attività:
Produttore
Prova della macchina:
Fornito
Descrizione di prodotto

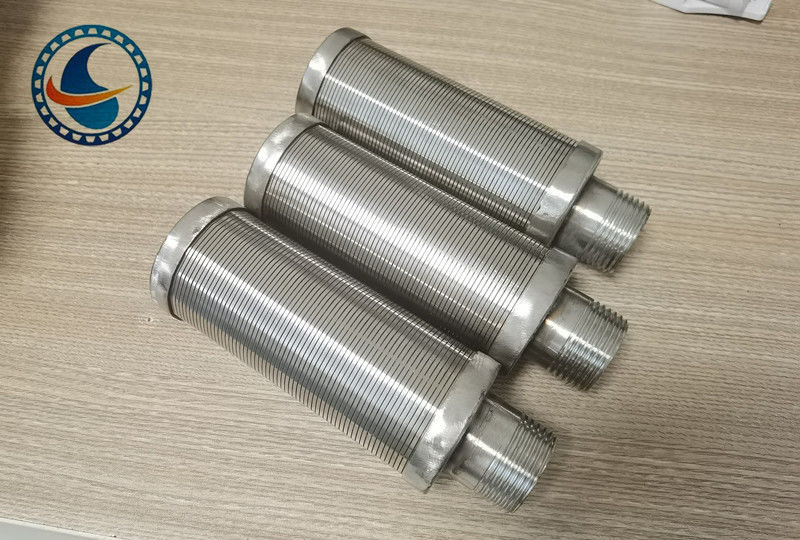

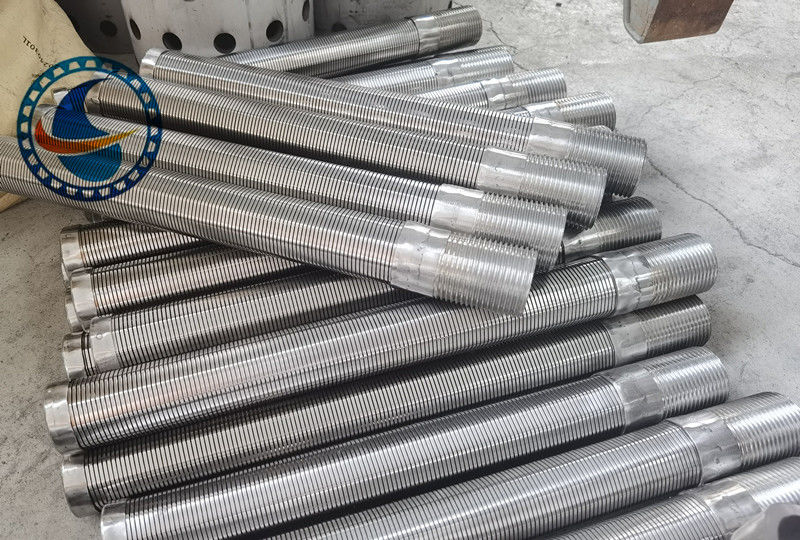

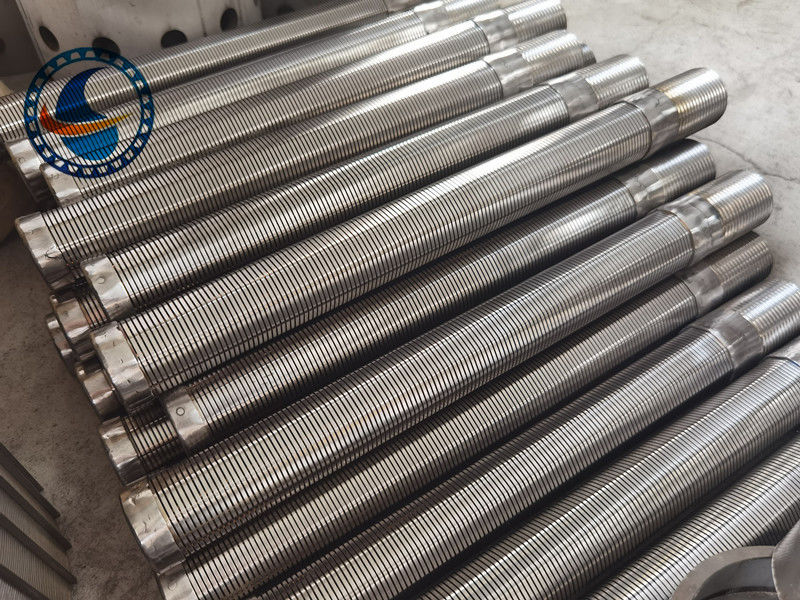

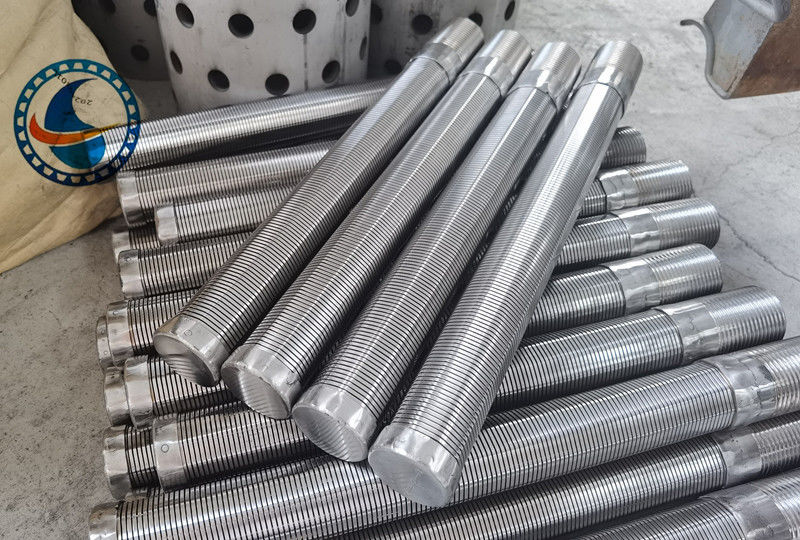

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe







The SS rod based continuous slot wedge wire screen pipe liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers.

These rod based continuous slot wedge wire screen pipes are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers.

These rod based continuous slot wedge wire screen pipes are typically used in mineral processing for coal, potash, salt, sand, pulp,paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.





Benefits of SS Rod Based Continuous Slot Wedge Wire Screen Pipe



High shive and stickies removal efficiency.
Maximized flow capacity.
Durable,extended operating life.
Application flexibility.
Dimensional accuracy.





Material

Stainless steel 304, 316, 316L

Diameter

26mm-1300mm

Shape

Cylindrical

Slot

0.02-100mm

Thickness

4mm

Feature

Geological formations comprised of small, fine particles

Water wells where gravel packs will be installed

Thin aquifers, where maximum open area is required

Large-and small-diameter deep wells

Application

--Architecture & Construction

--Food & Beverage Screens

--OEM Screen Components

--Refining & Petrochemical

--Waste Water Treatment

--Water Well & Oil well

--Coal & Mine

--Chemical industry

--Pharmacy

--Food and beverage

--Metallurgy

--Coal mining

--Environmental protectio





Rod Based Continuous Slot Wedge Wire Screen Pipe Characteristics:





1. Wedge Wire Screen Pipe has high mechanical strength, can bear large pressure drop.



2. Wedge Wire Screen Pipe has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.



3. The wedge type slot can improve backflushing and regeneration performance.



4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.



SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe 0
