Name: SS304 Vee shaped Profile Wire Wedge Wire Screen Filter Pipe
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070701
Price: 110.00 USD
Availability: InStock

Casa > PRODOTTI > Johnson Wedge Wire Screens >

SS304 Vee shaped Profile Wire Wedge Wire Screen Filter Pipe

SS304 Vee shaped Filter Pipe

SS304 Vee-shaped Wedge Screen

Wedge Wire Screen Filter Pipe

Luogo di origine:

Città di Hengshui, hebe Provincei, Cina

Marca:

HengYuan

Certificazione:

ISO,CO,FORM E,CIQ, etc

Numero di modello:

HY070701

Contattici

Richieda una citazione

Dettagli del prodotto

Nome:

Filtro a schermo a filo a cuneo con profilo a V

Materiale:

Acciaio inossidabile 304

Diametro:

48 mm

lunghezza:

1020mm

Scatto:

0.25mm

Acciaio:

cavo di V di 1.5*2mm

Rod di supporto:

cavo di V di 2*3mm

Finali:

Maschio a filo

Tecnica:

Saldatura del punto

Caratteristiche:

non ostruzione

Applicazione:

filteration

Pacchetto:

Scatola di legno

Tipo di attività:

Produttore

Tipo di filtro:

Dall'esterno all'interno

Prodotti relativi

Video

Continuous Slot Wedge Wire Screen Cylinders For Oil Well

Ottenga il migliore prezzo

Video

OD 2-3/8" Slot 100μm SS304 Johnson Type Wedge Wire Screen Filter

Ottenga il migliore prezzo

Video

Stainless Steel 316L 0.5mm Slot Wedge Wire Oil Screen Pipe 2-7/8" OD

Ottenga il migliore prezzo

Video

Full Welded Wedge Wire Wound Screen Of Stainless Steel

Ottenga il migliore prezzo

Contattici

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contatto ora

Descrizione di prodotto

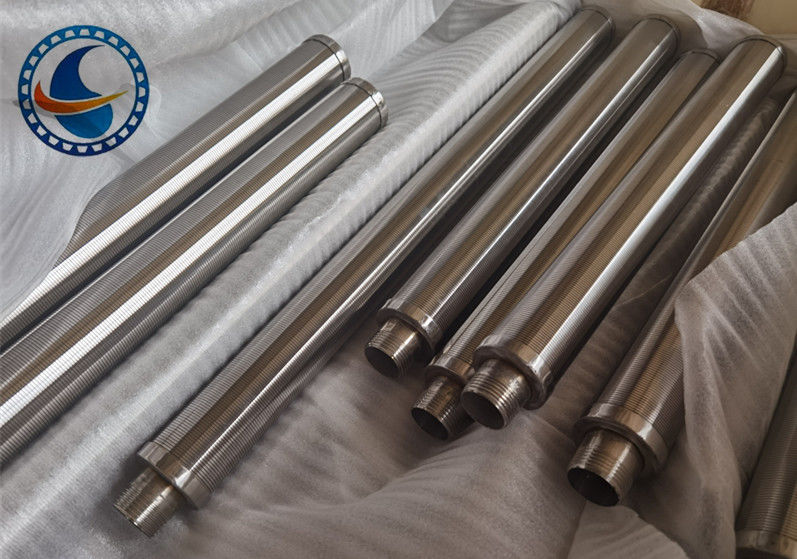

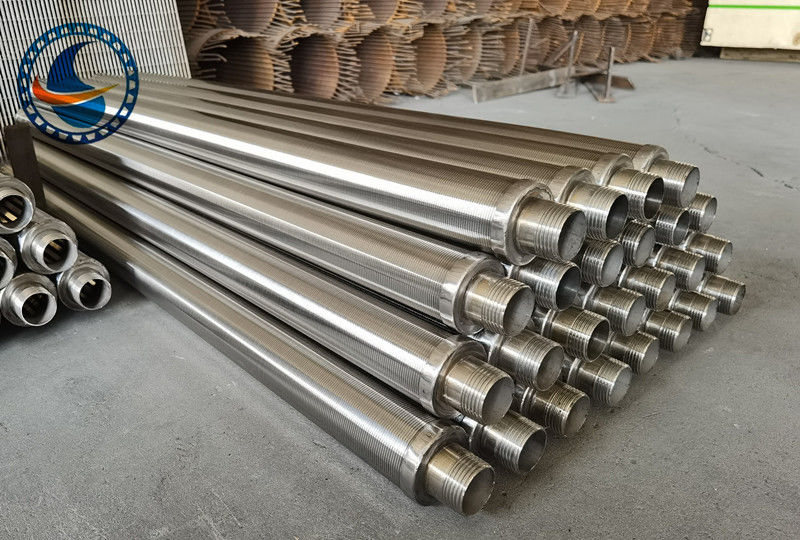

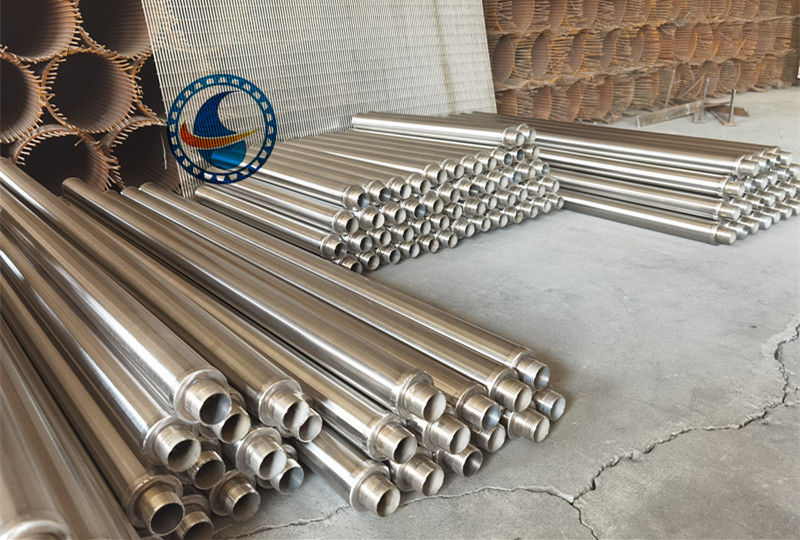

SS304 Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe

The surface profile of the wedge wire screen filter pipe comprises of a wire also known as V-shaped wire.

Remember, there are four types of surface profile available for a wedge wire filter,that is, flat wire, triangle wire, round wire, and trapezoid wire.

The primary material of surface profile in most wedge wire filters is steel due to its characteristics when it comes to filtration of fluids.

Depending on the directional flow of your fluid, the surface profile can either be horizontal or vertical.

The width size available for the surface profile ranges from 1.0mm to 4.0mm while the height varies from 2.0mm to 6.5mm.

Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Sizes:

Material : stainless steel wire.Such as: SS304, SS201, SS316L etc; Hastelloy C276; 904L; Duplex 2205,2507

Diameter : 26-1300 mm ,can make as customers request.

Slot: 0.02-100mm

Length :10-4000mm

End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Material	Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc.
Diameter	25mm-1300mm
Shape	Cylindrical
Slot	0.02mm-10mm
Thickness	4mm-12mm
Feature	Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells
Application	--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio

Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Features:

1. It has high mechanical strength, can bear large pressure drops.
2. The wedge-type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, used in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

SS304 Vee shaped Profile Wire Wedge Wire Screen Filter Pipe 0
