Name: Rod Based Wire Wrapped Screen Of Stainless Steel For Oil Wells
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070206
Price: 10 USD
Availability: InStock

Casa > PRODOTTI > Schermo avvolto cavo >

Rod Based Wire Wrapped Screen Of Stainless Steel For Oil Wells

Oil Wells Wire Wrapped Screen

Stainless Steel Wire Wrapped Screen

Rod Based Wire Wrapped Screen

Luogo di origine:

Hebei, Cina

Marca:

HengYuan

Certificazione:

ISO, CIQ, CQ

Numero di modello:

HY070206

Contattici

Richieda una citazione

Dettagli del prodotto

Nome:

Filtro avvolto con filo su aste

Materiale:

Acciaio inossidabile 316L

OD:

2-7/8»

Lunghezza:

5500mm

Scatto:

0.5 mm

Dimensione del filo:

2.28*3.56mm

Rod di supporto:

3*4.5mm

Tecnica:

Saldatura completa

Caratteristiche:

Non intasante, anticorrosione

Applicazione:

filtrazione di gas/olio/liquido

Brand name:

HengYuan

Finali:

Anelli saldati smussati

Prodotti relativi

Video

Rod Based Wire Wrapped Screen Of Stainless Steel For Water Wells

Ottenga il migliore prezzo

Video

8-5/8" Slot 20 Wire Wrapped Screen For Deep Wells

Ottenga il migliore prezzo

Video

0.3mm Slot Wire Wrapped Screen Pipe Of SS316L For Oil Wells

Ottenga il migliore prezzo

Video

Schermo di cavo di profilo, ss 304 Vee Wire Screen Tube, tubo dello schermo avvolto cavo

Ottenga il migliore prezzo

Contattici

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contatto ora

Descrizione di prodotto

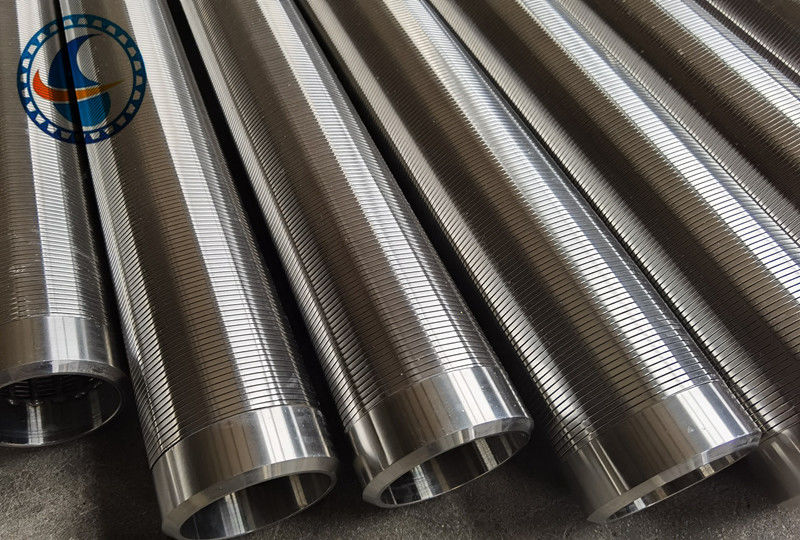

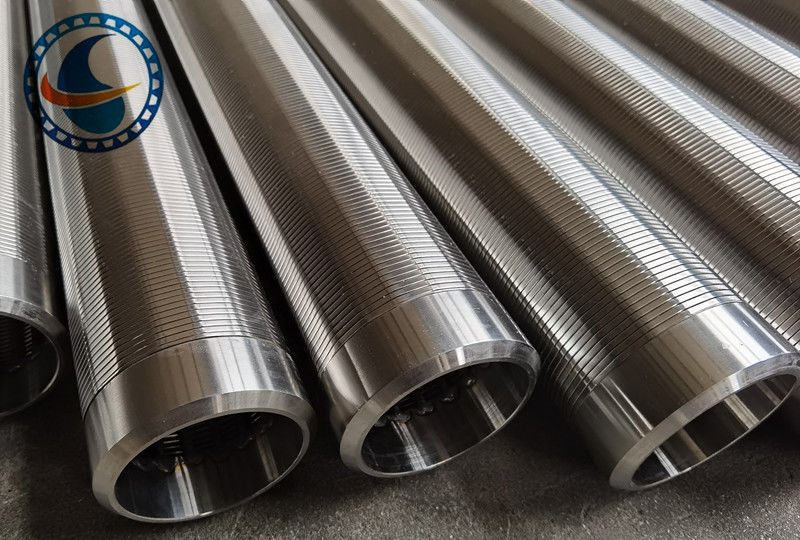

Rod Based Wire Wrapped Screen Of Stainless Steel For Oil Wells

Rod Based Wire Wrapped Screen Of Stainless Steel also called wedge wire screen, water well screen, water wire screen, rod based wire wrapped screen of stainless steel for oil wells, slotted tube.

It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The wire wrapped screen is composed of working profile and support profile.

It is produced on an automotive machine.

The support profiles are placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Rod Based Wire Wrapped Screen Size:

Tube Diameter	25 mm-1500mm
Tube length	0.3m-12 m.
Slot Size	0.02mm-2.5mm
Surface Profile Type	Triangle Wire
Support Profile	Triangle Wire, Round Wire,Flat Bar or Wedge Wire

Contact me:hengyuan1@aphywire.com WhatsApp / Wechat : +86 13903185920

---------------------------------------------------------------------------------------------------

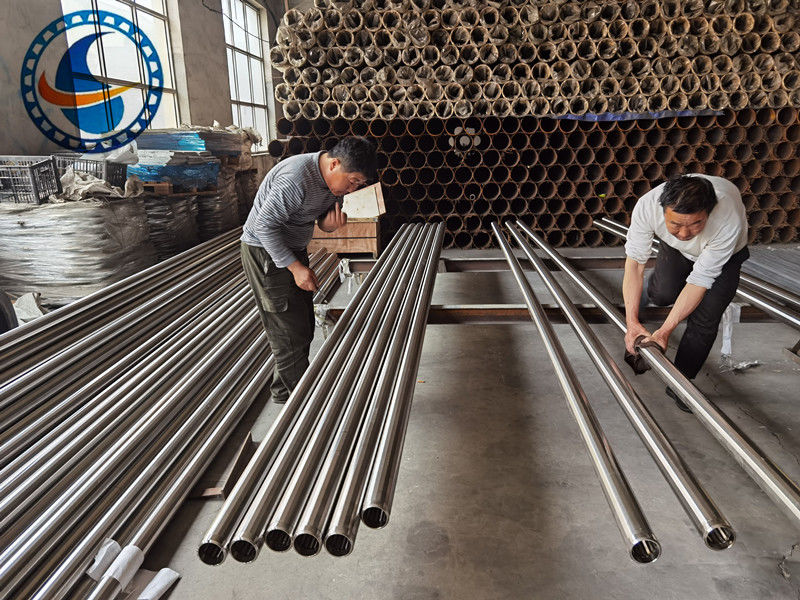

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are Wire wrapped screen,:stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen, screen nozzle /water and gas strainer, sieve plate, slot mesh, ARC screen,header and hub laterals &hub radial lateral etc.
